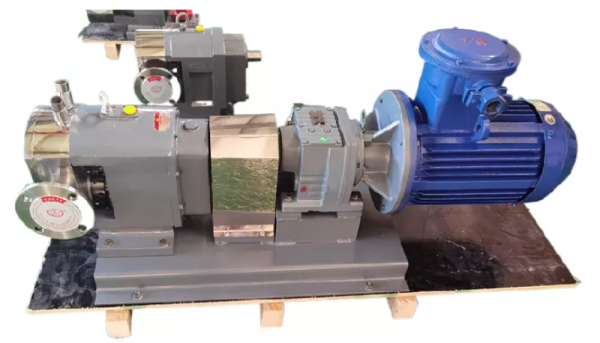

Conventional rotator metering pump

2023-05-04 20:20 12936 views

‌Based on API Spec 676, Sunrise petro has developed a series of Rotor metering pumps with high quality and competitive price. Sunrise petro designed and manufactured Rotor metering pumps according to the parameters and requirements based on different condition well. Sunrise petro owns abundant manufacturing experience in Rotor metering pump.

DESCRIPTION

The rotator metering pump is also called rotor metering pump, roots pump, colloid pump, high consistency slurry pump, etc. The rotor pump is a rotary positive displacement pump, which changes the working volume through the relative movement between the rotor and the pump body, thus increasing the energy of the fluid. Sunrise petro can produce rotator metering pump according to API 676 standard.

TECHNICAL DATA

Sunrise petro rotator metering pumps have various types to choose.

Model

Discharge

 Capacity Flow (M3/h)

Recommended speed

 Limit pressure

Viscosity range

Power range

(L/ r)

(<10000cp)

(RPM)

(Mpa)

(Cp)

(Kw)

SJ006

0.06

1

20~1000

0.8

1~500000

0.25~1.5

SJ015

0.15

2

20~700

1.5

1~1000000

0.55~2.2

SJ032

0.32

5

20~500

1.5

1~1000000

0.75~4.0

SJ070

0.7

10

20~500

1.5

1~1000000

1.5~7.5

SJ170

1.7

20

20~500

1.5

1~1000000

2.2~15

SJ320

3.2

35

20~400

1.5

1~1000000

3.0~30

SJ500

5

50

20~400

1.2

1~1000000

5.5~45

SJ700

7

80

20~400

1.2

1~1000000

7.5~55

MORE DETAILS

Advantage and feature

Sunrise petro rotator metering pump has the following advantages.

  1. Reliable rust prevention and non-toxic sealing.
  2. The streamline structure of the rotor and the rotor chamber are free of dead points and scrap metal parts, which avoid pollution to the transported substances, and are especially suitable for high viscosity media during transportation.
  3. External dynamic and static ring mechanical seal is adopted, which can be directly flushed with water, and is resistant to high temperature and high pressure.
  4. Small volume, large flow, high head pressure, suitable for long distance and high resistance quantitative transmission.
  5. The impeller of the pump is separated from the transmission gear, and a certain clearance is guaranteed between the components in the pump chamber, without contact, wear and low noise
  6. After the frequency converter is configured, the flow can be adjusted at will and can be used as a general metering pump.
  7. Compact structure, convenient maintenance, almost no wearing parts, low operation cost.
